MAESTRO CNC Hydraulic Press Brake Series yazısı ilk önce Toskar Makina üzerinde ortaya çıktı.

]]>

Maestro is designed with two main goals in mind: Easy operation, maximum productivity in the long run.

Carefully selected components, a sturdy steel frame (ST44 A1 steel) and wide variety of standard features like Motorized R axis (optional), manual crowning, full length tooling makes Maestro the workhorse of any production environment. Maestro’s high price/performance ratio makes it a good long-term investment for low-to-high volume/low mix production runs. Our 10” touchscreen 2D graphic control NexT 2.0 on Maestro is designed by our engineers with only two main goals in mind: Increase the productivity of the press brake and Make the life easier for the press brake operator.

NexT 2.0 achieves these goals by having a very easy to use graphical interface and doing all the hard work automatically like calculating the bend allowances, bend radii and optimum bending sequence. Increase the productivity of the press brake and Make the life easier for the press brake operator.

NexT 2.0, kullanımı cok kolay bir arayüze sahip olarak ve gerçek parça boyu, büküm radiusları ve optimum büküm sıralaması gibi tüm kompleks büküm hesaplarını otomatik olarak gercekleştirerek bu hedeflere ulaşıyor.

Maestro’s quick release clamps, manual Z fingers that are adjustable from front of the machine and sliding support arms make it real easy for tooling changes and part positioning.

Standart Features
  • Robust steel frame (ST44 A1) machined with high precision (up to 0,01 mm) and welded by professional certified welders
  • Chrome covered and honed cylinders and ground pistons with high quality seals
  • NexT 2.0 10” 2D Touchscreen CNC Controller or Cybelec Cybtouch 12, 12” 2D Touchscreen CNC Controller
  • Hoerbieger Hydraulics
  • 510 mm Throat Depth
  • High Stroke and Daylight
  • Quick release tool clamps with European and/or American type fitting
  • Y1 – Y2 Synchronized hydraulic cylinders
  • High-resolution linear scales for synchronized ram operation
  • X servo backgauge running on ballscrews and linear guides
  • Sliding Front Support Arms
  • Side Guards and back photocells for safety
  • Siemens Electrical Components
  • High Safety Pilz PLC system
  • Manual Crowning System
Optional Features
  • Special stroke, daylight and throat
  • R Axis with Servo Motor
  • Laser guards for finger protection (AKAS, LaserSafe)
  • Oil Heater, Oil Cooler
  • Optional tooling
  • CNC Crowning
  • Additional Backgauge Fingers

MAESTRO CNC Hydraulic Press Brake Series yazısı ilk önce Toskar Makina üzerinde ortaya çıktı.

]]> EasyFab II CNC Hydraulic Press Brake Series https://toskar.com/en/makineler/easyfab-ii-cnc-hidrolik-abkant-pres-serisi/ Sat, 30 Apr 2022 12:06:28 +0000 https://toskar.com/makineler/easyfab-ii-cnc-hidrolik-abkant-pres-serisi/ Carefully selected components, a sturdy steel frame (ST44 A1 steel) and wide variety of standard features like 2D-3D Touchscreen Controller,two Axis Servo Backgauge (X,R)(optional up to 8 axes), CNC crowning, Quick Release Promecams and 510mm throatdepth makes EasyfabII to be your best friend in your jobshop.

EasyFab II CNC Hydraulic Press Brake Series yazısı ilk önce Toskar Makina üzerinde ortaya çıktı.

]]>

Carefully selected components, a sturdy steel frame (ST44 A1 steel) and wide variety of standard features like 2D-3D Touchscreen Controller,two Axis Servo Backgauge (X,R)(optional up to 8 axes), CNC crowning, Quick Release Promecams and 510mm throatdepth makes EasyfabII to be your best friend in your jobshop.

Standart Features
  • Robust steel frame (ST44 A1) machined with high precision (up to 0,01 mm) and welded by professional certified welders.
  • Taşlanmış ve krom kaplı yüksek kalitede keçe kullanılmış piston ve silindirler.
  • NexT 3.0 3D/2D 17” Touchscreen CNC Controller OR Cybelec Cybtouch15 15“ Touchscreen CNC Controller
  • Hoerbieger Hydraulics
  • 510 mm Throat Depth
  • High Stroke and Daylight
  • Quick Tool Clamps
  • Y1 – Y2 Synchronized hydraulic cylinders
  • High resolution linear scales for synchronized ram operation
  • X,R axes servo backgauge running on ballscrews and linear guides
  • Sliding Front Support Arms
  • Side Guards and back photocells for safety
  • Siemens Electrical Components
  • High Safety Pilz PLC system
  • CNC Crowning System
Optional Features
  • Special stroke, daylight and throat
  • Laser guards for finger protection (AKAS, LaserSafe)
  • Oil Heater, Oil Cooler
  • Tooling
  • .
  • .

EasyFab II CNC Hydraulic Press Brake Series yazısı ilk önce Toskar Makina üzerinde ortaya çıktı.

]]> VersaFAB 8 Axis CNC Hydraulic Press Brake Series https://toskar.com/en/makineler/versafab-8-eksen-cnc-hidrolik-abkant-pres-serisi/ Sat, 30 Apr 2022 12:05:45 +0000 https://toskar.com/makineler/versafab-8-eksen-cnc-hidrolik-abkant-pres-serisi/ VERSAFAB is the flagship press brake of Toskar. Designed by our engineers to be an “All-Purpose” press brake VersaFab shines in production environments where low volume/high mix parts are on the day’s menu.

VersaFAB 8 Axis CNC Hydraulic Press Brake Series yazısı ilk önce Toskar Makina üzerinde ortaya çıktı.

]]>

VERSAFAB is the flagship press brake of Toskar. Designed by our engineers to be an “All-Purpose” press brake VersaFab shines in production environments where low volume/high mix parts are on the day’s menu.

Carefully selected components, a sturdy steel frame (ST44 A1 steel) and wide variety of standard features like 6 Axis Servo Backgauge (X1,X2,,R1,RA,Z1,Z2), CNC crowning, Quick Release top&bottom hydraulic tool clamping and Visiobend Led Guide System makes VersaFab the go-to machine for complex parts and low to high volume/multiple setup scenarios.

When machine setup times are critical for operators, VersaFab’s user friendly NexT 3.0 3D/2D controller can be a big boost to shorten programming and recalling part programs,while Visiobend Led guide assists every step of your stage bendings. VersaFab’s CNC crowning ensures even angles on long parts without operator intervention and its 6 axis backgauge with versatile fingers and hydraulic top tool clamps make it real easy for stage bending where multiple tooling stations are involved. .

VersaFab’s CNC crowning ensures even angles on long parts without operator intervention and It’s 6 axis backgauge with versatile fingers and hydraulic top tool clamps make it real easy for stage bending where multiple tooling stations are involved.

Standart Features
  • Robust steel frame (ST44 A1) machined with high precision (up to 0,01 mm) and welded by professional certified welders.
  • Chrome covered and honed cylinders and ground pistons with high quality seals

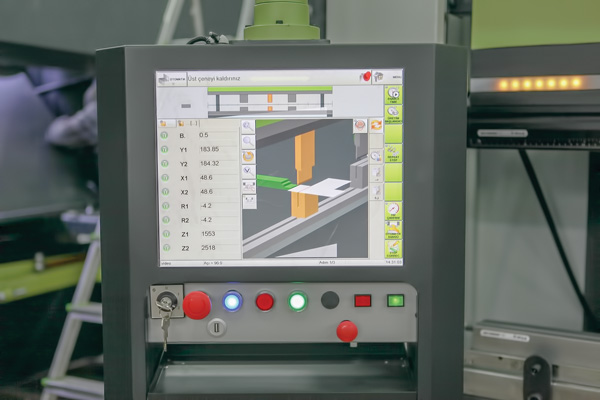

  • NexT 3.0 3D/2D 17” Touchscreen CNC Controller
  • 510 mm Throat depth
  • High Stroke and Daylight
  • Hoerbieger Hydraulics
  • Wila Hidrolik Top&Bottom Tools
  • Y1 – Y2 Synchronized hydraulic cylinders
  • High resolution linear scales for synchronized ram operation

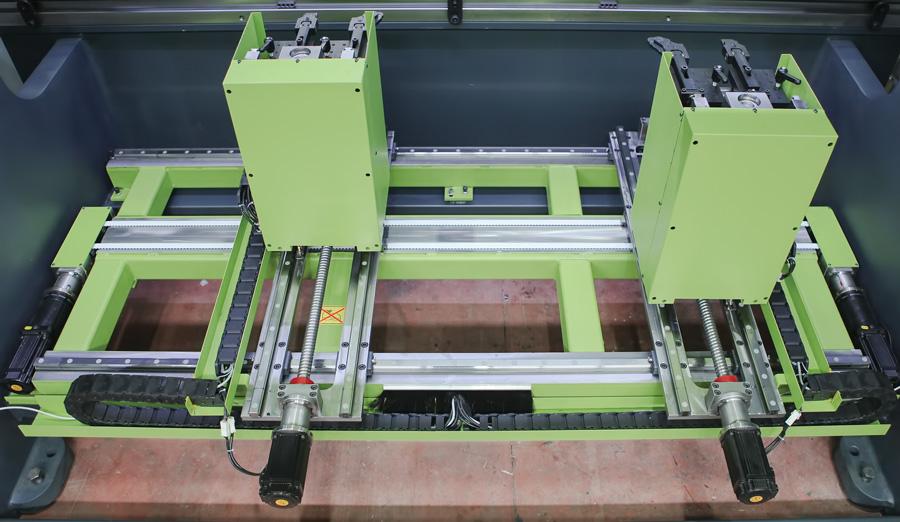

  • X1,X2 + R1,R2 + Z1 + Z2 servo backgauge running on ballscrews and linear guides
  • Sliding Front Support Arms
  • Side Guards and back photocells for safety
  • Siemens Electrical Components
  • High Safety Pilz PLC system
  • CNC Crowning System

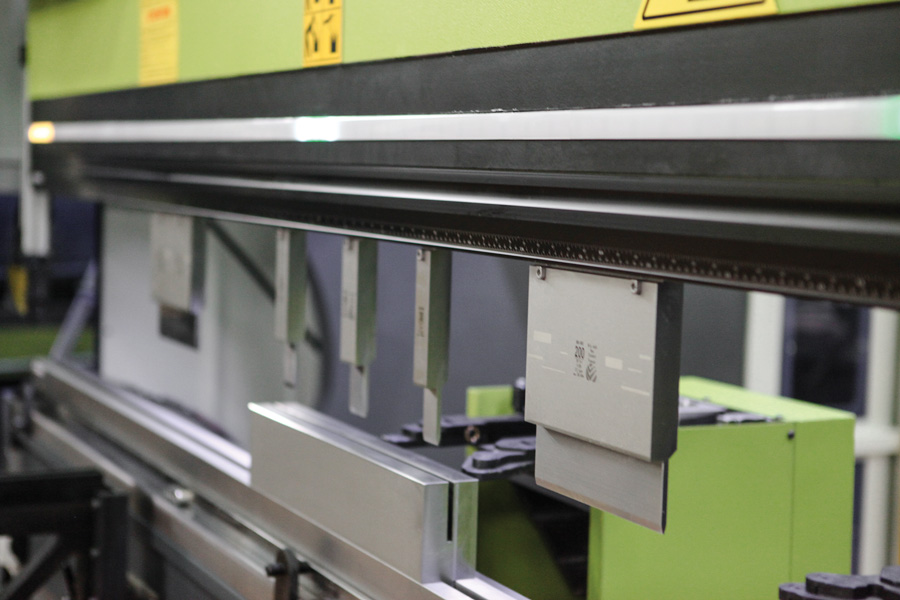

  • Visiobend Led Guide System
Optional Features
  • Special stroke, daylight and throat
  • Laser guards for finger protection (AKAS, LaserSafe)
  • Oil Heater/ Cooller
  • Optional Tooling

VersaFAB 8 Axis CNC Hydraulic Press Brake Series yazısı ilk önce Toskar Makina üzerinde ortaya çıktı.

]]> EasyCUT Swing Beam Hydraulic Shear https://toskar.com/en/makineler/easycut-hidrolik-devirmeli-giyotin-makas/ Sat, 30 Apr 2022 12:04:53 +0000 https://toskar.com/makineler/easycut-hidrolik-devirmeli-giyotin-makas/ EasyCut Swing beam shears are designed to be rugged, everyday-use machines to be utilized in rough production environments.

EasyCUT Swing Beam Hydraulic Shear yazısı ilk önce Toskar Makina üzerinde ortaya çıktı.

]]>

Its sturdy frame, easy to use touchscreen controller, standard throat and rugged backgauge running on ballscrews by motors with brakes makes it a versatile shear from easy one cuts to demanding plate runs.

Automatic blade gap adjustment and automatic stroke adjustment makes set up times shorter and increases productivity.

.

Standart Features
  • Rigid frame machined&welded from ST44A1 steel
  • Hardened&Ground cutting blades (4 sided)
  • Cybelec Cybtouch6
  • 1000 mm backgauge on ballscrews and AC motor with brake
  • 1 meter front support arms
  • Sheet slider panels at the back
  • Hoerbiger Hydraulics
  • Siemens Electrical Components
  • Hydraulic hold downs
  • Automatic Blade Gap Adjustment system
  • Automatic Stroke adjustment
Optional Features
  • Front Angle Gauge
  • Sheet Conveyor and Stacking System
  • Sheet Support System at the back (to support thin sheets during cutting)
  • Oil Cooler and Oil Heater
  • Light Barriers on the front for finger protection
  • Laser Cutting Line
  • RTS(Return to Sender)Sheet Support System

EasyCUT Swing Beam Hydraulic Shear yazısı ilk önce Toskar Makina üzerinde ortaya çıktı.

]]> VersaCUT Hydraulic Variable Rake Guillotine Shear https://toskar.com/en/makineler/versacut-hydraulic-variable-rake-guillotine-shear/ Sat, 30 Apr 2022 12:04:06 +0000 https://toskar.com/makineler/versacut-hydraulic-variable-rake-guillotine-shear/ VersaCut variable rake shears are designed to be rugged, everyday-use machines to be utilized in rough production environments. Variable angle capability of VersaCut allows the operators to cut different plate thicknesses with minimum setup time

VersaCUT Hydraulic Variable Rake Guillotine Shear yazısı ilk önce Toskar Makina üzerinde ortaya çıktı.

]]>

VersaCut variable rake shears are designed to be rugged, everyday-use machines to be utilized in rough production environments. Variable angle capability of VersaCut allows the operators to cut different plate thicknesses with minimum setup time Its sturdy frame, easy to use Cybelec DNC61 controller, standard throat and rugged backgauge running on ballscrews by motors with brake makes it a versatile shear to run low volume/high mix product runs as well as thin strips of all thicknesses.

Automatic angle adjustment for the cutting blade, automatic blade gap adjustment and automatic stroke adjustment make set-up times shorter and increases productivity.

.

Standart Features
  • Rigid frame machined&welded from ST44A1 steel
  • Hardened&Ground cutting blades (4 sided)
  • Cybelec Cybtouch 6 G
  • 1000 mm backgauge on ballscrews and AC motor with brake
  • 1 meter front support arms
  • Sheet slider panels at the back
  • Hoerbiger Hydraulics
  • Siemens Electrical Components
  • Hydraulic hold downs
  • Automatic Angle Adjustment for the cutting blade
  • Automatic Blade Gap Adjustment system
  • Automatic Stroke adjustment
Optional Features
  • Front Angle Gauge
  • Sheet Conveyor and Stacking System
  • Sheet Support System at the back (to support thin sheets during cutting)
  • Oil Cooler and Oil Heater
  • Light Barriers on the front for finger protection
  • Laser Cutting Line
  • RTS(Return to Sender)Sheet Support System

VersaCUT Hydraulic Variable Rake Guillotine Shear yazısı ilk önce Toskar Makina üzerinde ortaya çıktı.

]]>
